Add a tool for visualizing layer outputs

tools/visualize_layer_output.lua

@@ -0,0 +1,138 @@
+require 'pl'
+local __FILE__ = (function() return string.gsub(debug.getinfo(2, 'S').source, "^@", "") end)()
+package.path = path.join(path.dirname(__FILE__), "..", "lib", "?.lua;") .. package.path
+require 'sys'
+require 'w2nn'
+local iproc = require 'iproc'
+local reconstruct = require 'reconstruct'
+local image_loader = require 'image_loader'
+
+local CONV_LAYERS = {"nn.SpatialConvolutionMM",
+		     "cudnn.SpatialConvolution",
+		     "nn.SpatialFullConvolution",
+		     "cudnn.SpatialFullConvolution"
+}
+local ACTIVATION_LAYERS = {"nn.ReLU",
+			   "nn.LeakyReLU",
+			   "w2nn.LeakyReLU",
+			   "cudnn.ReLU",
+			   "nn.SoftMax",
+			   "cudnn.SoftMax"
+}
+
+local function includes(s, a)
+   for i = 1, #a do
+      if s == a[i] then
+	 return true
+      end
+   end
+   return false
+end
+local function count_conv_layers(seq)
+   local count = 0
+   for k = 1, #seq.modules do
+      local mod = seq.modules[k]
+      local name = torch.typename(mod)
+      if name == "nn.ConcatTable" or includes(name, CONV_LAYERS) then
+	 count = count + 1
+      end
+   end
+   return count
+end
+local function strip_conv_layers(seq, limit)
+   local new_seq = nn.Sequential()
+   local count = 0
+   for k = 1, #seq.modules do
+      local mod = seq.modules[k]
+      local name = torch.typename(mod)
+      if name == "nn.ConcatTable" or includes(name, CONV_LAYERS) then
+	 new_seq:add(mod)
+	 count = count + 1
+	 if count == limit then
+	    if seq.modules[k+1] ~= nil and
+	    includes(torch.typename(seq.modules[k+1]), ACTIVATION_LAYERS) then
+	       new_seq:add(seq.modules[k+1])
+	    end
+	    return new_seq
+	 end
+      else
+	 new_seq:add(mod)
+      end
+   end
+   return new_seq
+end

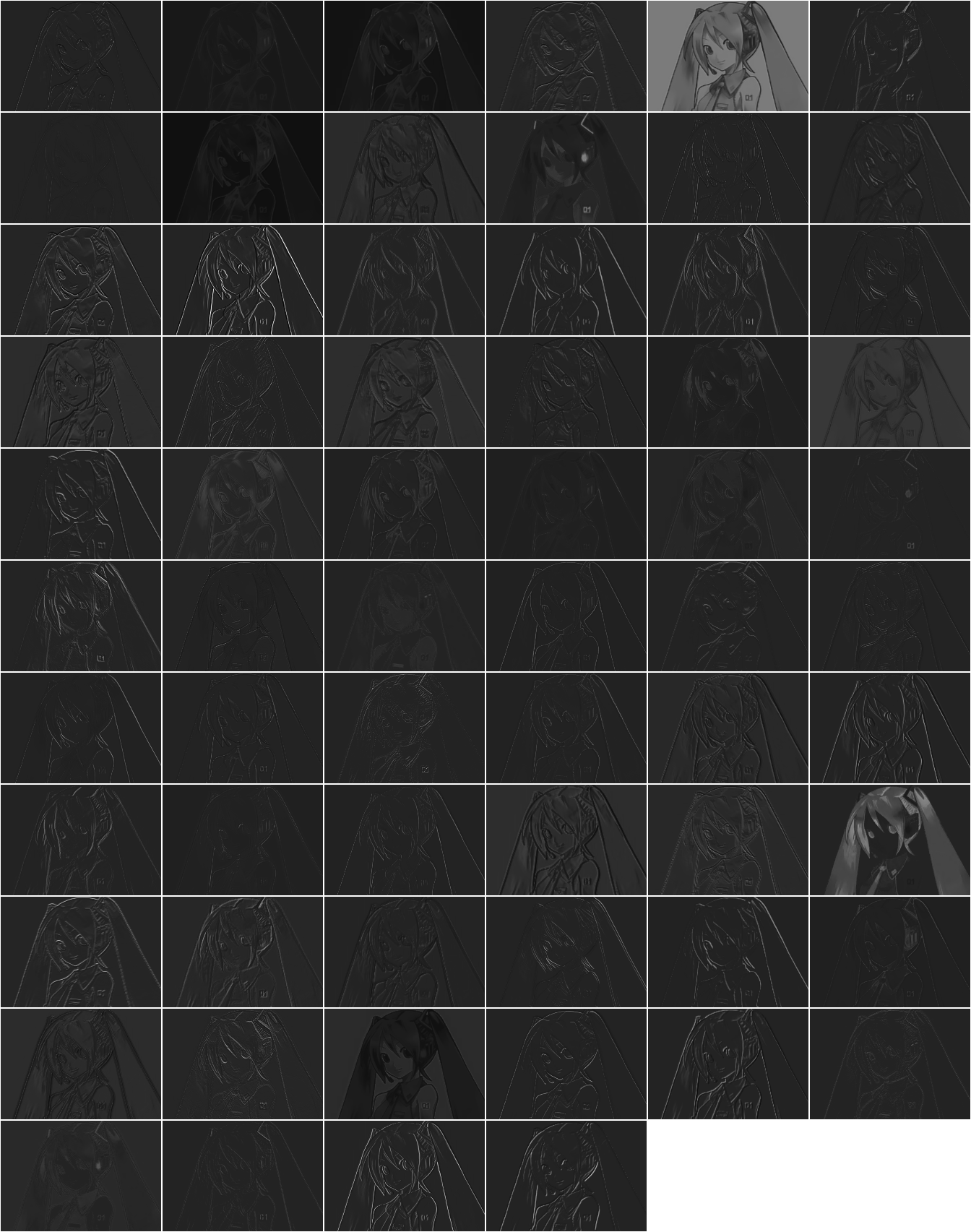

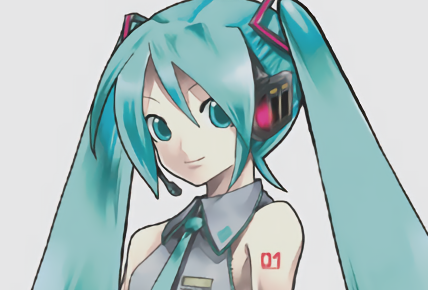

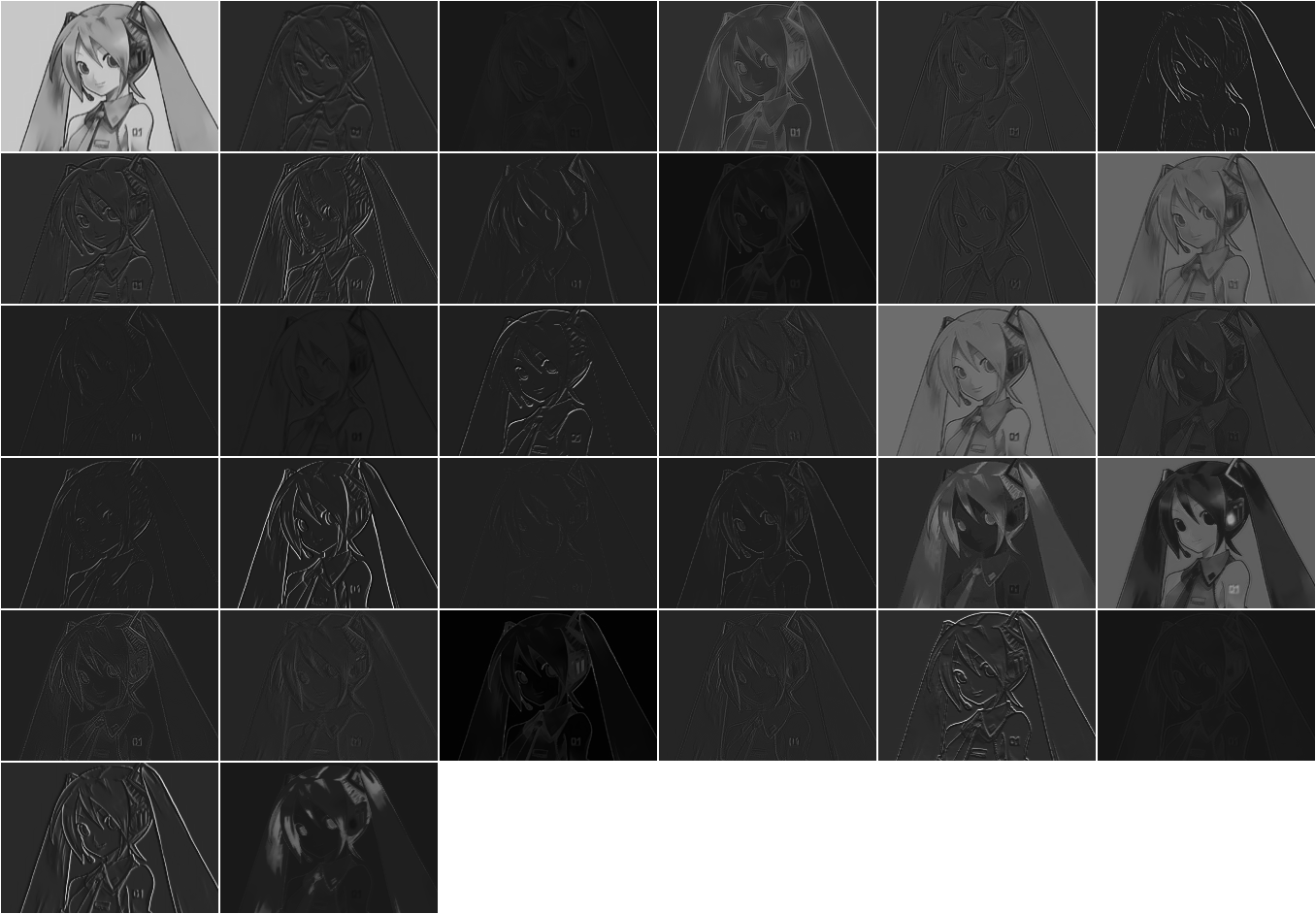

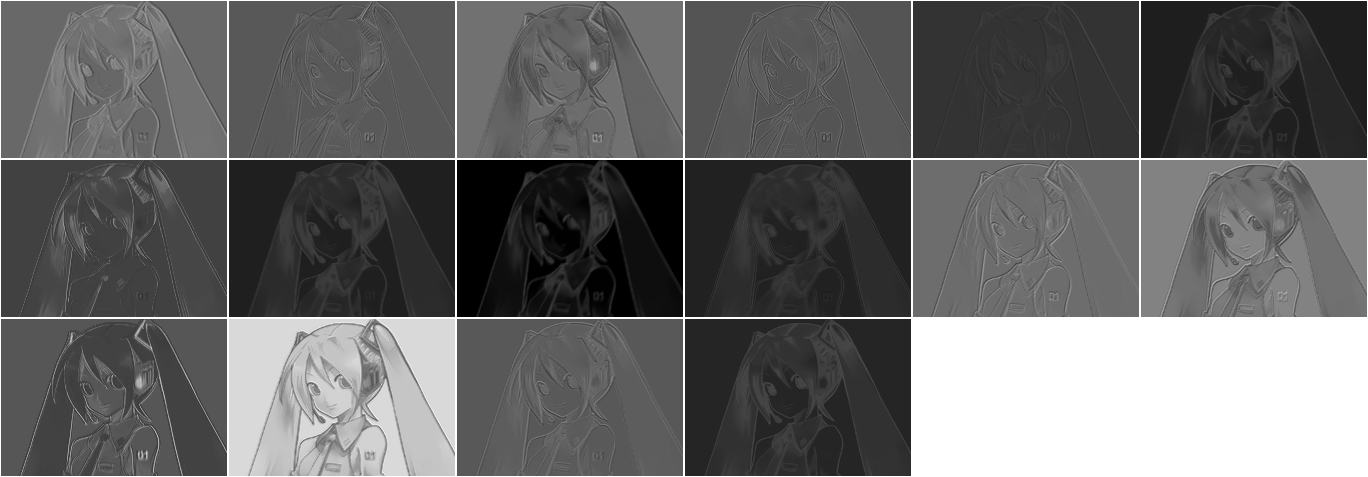

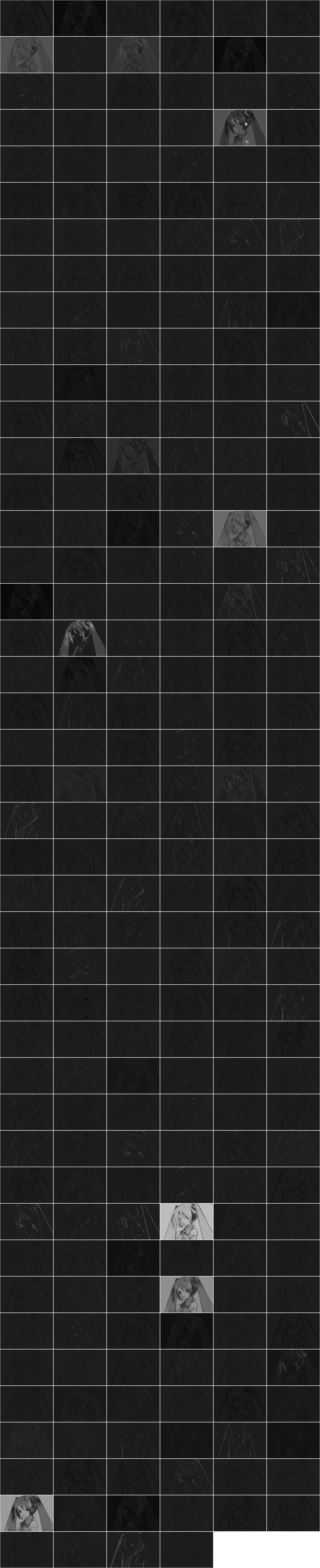

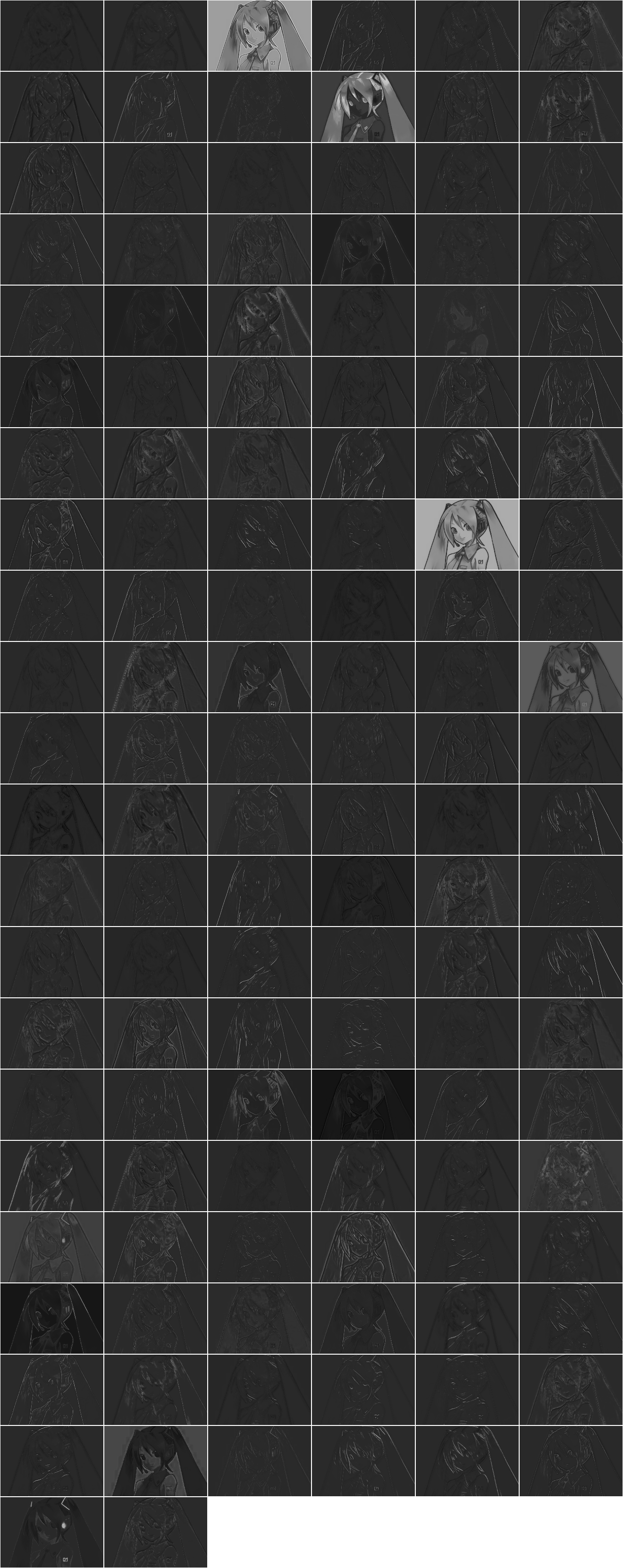

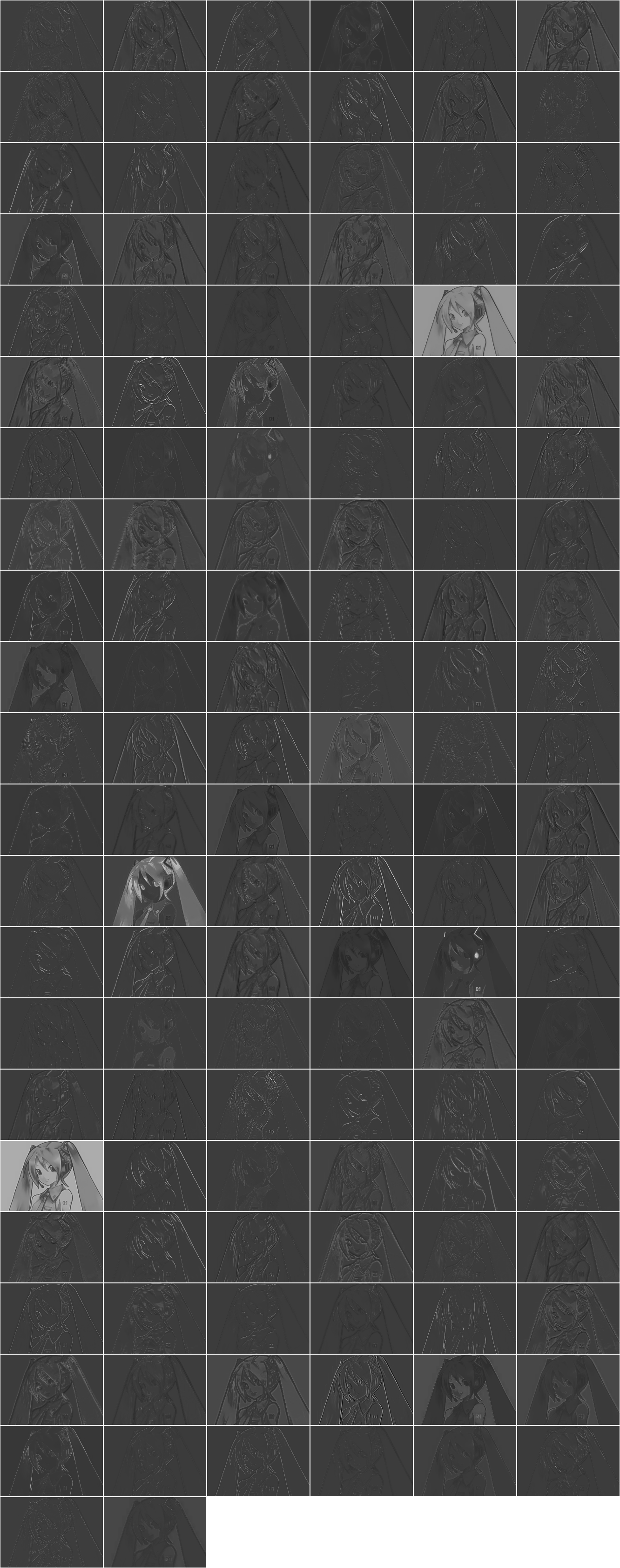

+local function save_layer_outputs(x, model, out)
+   local count = count_conv_layers(model)
+   print("conv layer count", count)
+   local output_file = path.join(out, string.format("layer-%d.png", 0))
+   image.save(output_file, x)
+   print("* save layer output " .. 0 .. ": " .. output_file)
+   for i = 1, count do
+      output_file = path.join(out, string.format("layer-%d.png", i))
+      print("* save layer output " .. i .. ": " .. output_file)
+      local test_model = strip_conv_layers(model, i)
+      test_model:cuda()
+      test_model:evaluate()
+      local z = test_model:forward(x:reshape(1, x:size(1), x:size(2), x:size(3)):cuda()):float()
+      z = z:reshape(z:size(2), z:size(3), z:size(4)) -- drop batch dim
+      z = image.toDisplayTensor({input=z, padding=2})
+      image.save(output_file, z)
+      collectgarbage()
+   end
+end
+
+local cmd = torch.CmdLine()
+cmd:text()
+cmd:text("waifu2x - visualize layer output")
+cmd:text("Options:")
+cmd:option("-i", "images/miku_small.png", 'path to input image')
+cmd:option("-scale", 2, 'scale factor')
+cmd:option("-o", "./layer_outputs", 'path to output dir')
+cmd:option("-model_dir", "./models/upconv_7/art", 'path to model directory')
+cmd:option("-name", "user", 'model name for user method')
+cmd:option("-m", "noise_scale", 'method (noise|scale|noise_scale|user)')
+cmd:option("-noise_level", 1, '(1|2|3)')
+cmd:option("-force_cudnn", 0, 'use cuDNN backend (0|1)')
+cmd:option("-gpu", 1, 'Device ID')
+
+local opt = cmd:parse(arg)
+cutorch.setDevice(opt.gpu)
+opt.force_cudnn = opt.force_cudnn == 1
+opt.model_path = path.join(opt.model_dir, string.format("%s_model.t7", opt.name))
+
+local x, meta = image_loader.load_float(opt.i)
+if x:size(2) > 256 or x:size(3) > 256 then
+   error(string.format("input image is too large: %dx%d", x:size(3), x:size(2)))
+end
+local model = nil
+local new_x = nil
+
+if opt.m == "noise" then
+   local model_path = path.join(opt.model_dir, ("noise%d_model.t7"):format(opt.noise_level))
+   model = w2nn.load_model(model_path, opt.force_cudnn)
+   if not model then
+      error("Load Error: " .. model_path)
+   end
+elseif opt.m == "scale" then
+   local model_path = path.join(opt.model_dir, ("scale%.1fx_model.t7"):format(opt.scale))
+   model = w2nn.load_model(model_path, opt.force_cudnn)
+   if not model then
+      error("Load Error: " .. model_path)
+   end
+elseif opt.m == "noise_scale" then
+   local model_path = path.join(opt.model_dir, ("noise%d_scale%.1fx_model.t7"):format(opt.noise_level, opt.scale))
+   model = w2nn.load_model(model_path, opt.force_cudnn)
+elseif opt.m == "user" then
+   local model_path = opt.model_path
+   model = w2nn.load_model(model_path, opt.force_cudnn)
+   if not model then
+      error("Load Error: " .. model_path)
+   end
+else
+   error("undefined method:" .. opt.method)
+end
+assert(model ~= nil)
+assert(x ~= nil)
+
+dir.makepath(opt.o)
+save_layer_outputs(x, model, opt.o)
