Customizing Editor Features

Customizing a Shortcut Event

We will use a simple example to illustrate how to quickly add a shortcut event.

In this example, text that starts and ends with an underscore ( _ ) character will be rendered in italics for emphasis. So typing _xxx_ will automatically be converted into xxx.

Let's start with a blank document:

@override
Widget build(BuildContext context) {
  return Scaffold(
    body: Container(
      alignment: Alignment.topCenter,
      child: AppFlowyEditor(
        editorState: EditorState.empty(),
        editorStyle: EditorStyle.defaultStyle(),
        shortcutEvents: const [],
        customBuilders: const {},
      ),
    ),
  );
}

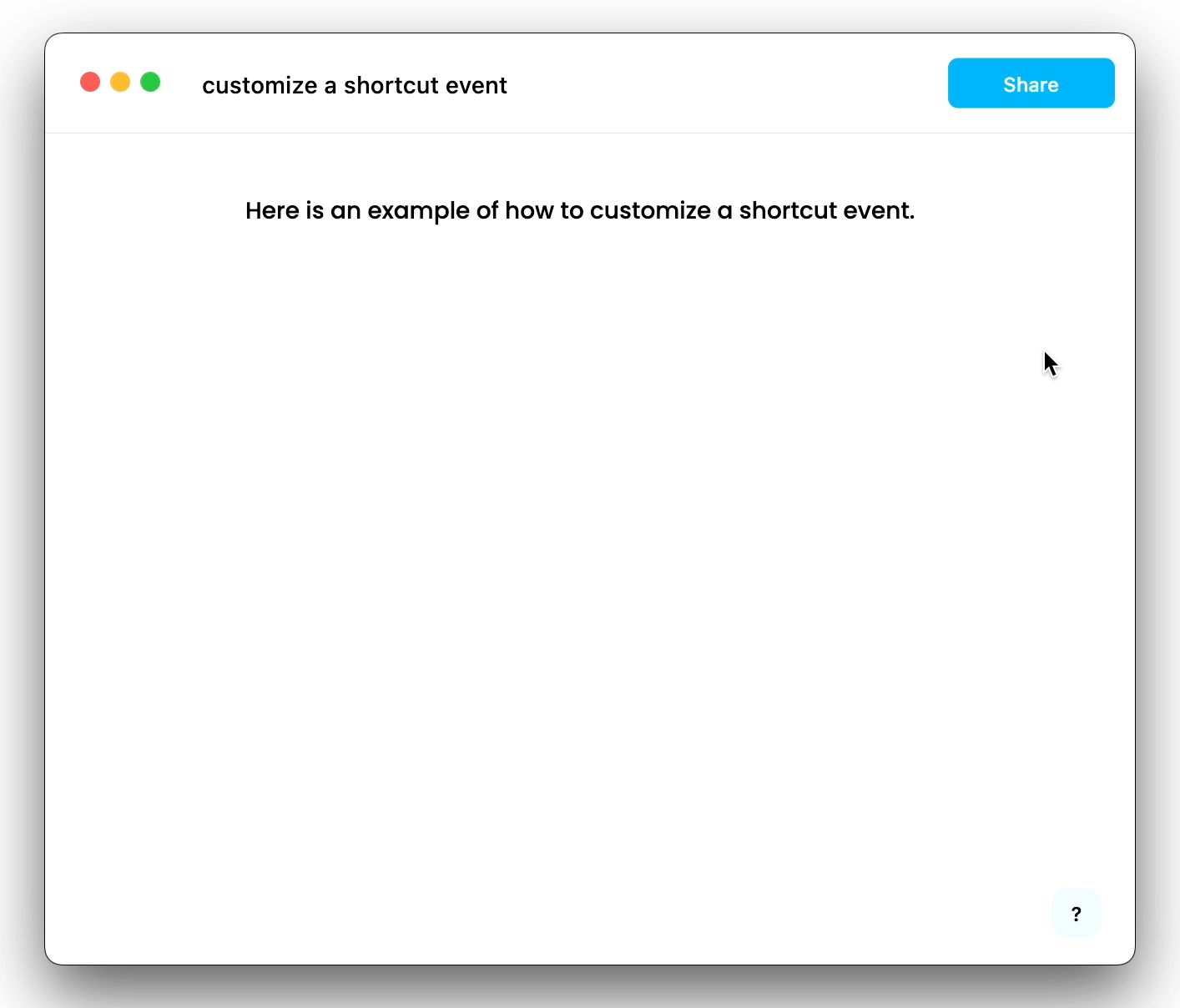

At this point, nothing magic will happen after typing _xxx_.

To implement our shortcut event we will create a ShortcutEvent instance to handle an underscore input.

We need to define key and command in a ShortCutEvent object to customize hotkeys. We recommend using the description of your event as a key. For example, if the underscore _ is defined to make text italic, the key can be 'Underscore to italic'.

The command, made up of a single keyword such as underscore or a combination of keywords using the + sign in between to concatenate, is a condition that triggers a user-defined function. To see which keywords are available to define a command, please refer to key_mapping.dart. If more than one commands trigger the same handler, then we use ',' to split them. For example, using CTRL and A or CMD and A to 'select all', we describe it as cmd+a,ctrl+a(case-insensitive).

import 'package:appflowy_editor/appflowy_editor.dart';
import 'package:flutter/material.dart';

ShortcutEvent underscoreToItalicEvent = ShortcutEvent(
  key: 'Underscore to italic',
  command: 'shift+underscore',
  handler: _underscoreToItalicHandler,
);

ShortcutEventHandler _underscoreToItalicHandler = (editorState, event) {

};

Then, we need to determine if the currently selected node is a TextNode and if the selection is collapsed.

If so, we will continue.

// ...
ShortcutEventHandler _underscoreToItalicHandler = (editorState, event) {
  // Obtain the selection and selected nodes of the current document through the 'selectionService'
  // to determine whether the selection is collapsed and whether the selected node is a text node.
  final selectionService = editorState.service.selectionService;
  final selection = selectionService.currentSelection.value;
  final textNodes = selectionService.currentSelectedNodes.whereType<TextNode>();
  if (selection == null || !selection.isSingle || textNodes.length != 1) {
    return KeyEventResult.ignored;
  }

Now, we deal with handling the underscore.

Look for the position of the previous underscore and

if one is not found, return without doing anything.
if one is found, the text enclosed within the two underscores will be formatted to display in italics.

// ...
ShortcutEventHandler _underscoreToItalicHandler = (editorState, event) {
  // ...

  final textNode = textNodes.first;
  final text = textNode.toRawString();
  // Determine if an 'underscore' already exists in the text node and only once.
  final firstUnderscore = text.indexOf('_');
  final lastUnderscore = text.lastIndexOf('_');
  if (firstUnderscore == -1 ||
      firstUnderscore != lastUnderscore ||
      firstUnderscore == selection.start.offset - 1) {
    return KeyEventResult.ignored;
  }

  // Delete the previous 'underscore',
  // update the style of the text surrounded by the two underscores to 'italic',
  // and update the cursor position.
  TransactionBuilder(editorState)
    ..deleteText(textNode, firstUnderscore, 1)
    ..formatText(
      textNode,
      firstUnderscore,
      selection.end.offset - firstUnderscore - 1,
      {
        BuiltInAttributeKey.italic: true,
      },
    )
    ..afterSelection = Selection.collapsed(
      Position(
        path: textNode.path,
        offset: selection.end.offset - 1,
      ),
    )
    ..commit();

  return KeyEventResult.handled;
};

Now our 'underscore handler' function is done and the only task left is to inject it into the AppFlowyEditor.

@override
Widget build(BuildContext context) {
  return Scaffold(
    body: Container(
      alignment: Alignment.topCenter,
      child: AppFlowyEditor(
        editorState: EditorState.empty(),
        editorStyle: EditorStyle.defaultStyle(),
        customBuilders: const {},
        shortcutEvents: [
          underscoreToItalic,
        ],
      ),
    ),
  );
}

Check out the complete code file of this example.

Customizing a Component

We will use a simple example to show how to quickly add a custom component.

In this example we will render an image from the network.

Let's start with a blank document:

@override
Widget build(BuildContext context) {
  return Scaffold(
    body: Container(
      alignment: Alignment.topCenter,
      child: AppFlowyEditor(
        editorState: EditorState.empty(),
        editorStyle: EditorStyle.defaultStyle(),
        shortcutEvents: const [],
        customBuilders: const {},
      ),
    ),
  );
}

Next, we will choose a unique string for your custom node's type.

We'll use network_image in this case. And we add network_image_src to the attributes to describe the link of the image.

{
  "type": "network_image",
  "attributes": {
    "network_image_src": "https://docs.flutter.dev/assets/images/dash/dash-fainting.gif"
  }
}

Then, we create a class that inherits NodeWidgetBuilder. As shown in the autoprompt, we need to implement two functions:

one returns a widget
the other verifies the correctness of the Node.

import 'package:appflowy_editor/appflowy_editor.dart';
import 'package:flutter/material.dart';

class NetworkImageNodeWidgetBuilder extends NodeWidgetBuilder {
  @override
  Widget build(NodeWidgetContext<Node> context) {
    throw UnimplementedError();
  }

  @override
  NodeValidator<Node> get nodeValidator => throw UnimplementedError();
}

Now, let's implement a simple image widget based on Image.

Note that the State object that is returned by the Widget must implement Selectable using the with keyword.

class _NetworkImageNodeWidget extends StatefulWidget {
  const _NetworkImageNodeWidget({
    Key? key,
    required this.node,
  }) : super(key: key);

  final Node node;

  @override
  State<_NetworkImageNodeWidget> createState() =>
      __NetworkImageNodeWidgetState();
}

class __NetworkImageNodeWidgetState extends State<_NetworkImageNodeWidget>
    with Selectable {
  RenderBox get _renderBox => context.findRenderObject() as RenderBox;

  @override
  Widget build(BuildContext context) {
    return Image.network(
      widget.node.attributes['network_image_src'],
      height: 200,
      loadingBuilder: (context, child, loadingProgress) =>
          loadingProgress == null ? child : const CircularProgressIndicator(),
    );
  }

  @override
  Position start() => Position(path: widget.node.path, offset: 0);

  @override
  Position end() => Position(path: widget.node.path, offset: 1);

  @override
  Position getPositionInOffset(Offset start) => end();

  @override
  List<Rect> getRectsInSelection(Selection selection) =>
      [Offset.zero & _renderBox.size];

  @override
  Selection getSelectionInRange(Offset start, Offset end) => Selection.single(
        path: widget.node.path,
        startOffset: 0,
        endOffset: 1,
      );

  @override
  Offset localToGlobal(Offset offset) => _renderBox.localToGlobal(offset);
}

Finally, we return _NetworkImageNodeWidget in the build function of NetworkImageNodeWidgetBuilder...

class NetworkImageNodeWidgetBuilder extends NodeWidgetBuilder {
  @override
  Widget build(NodeWidgetContext<Node> context) {
    return _NetworkImageNodeWidget(
      key: context.node.key,
      node: context.node,
    );
  }

  @override
  NodeValidator<Node> get nodeValidator => (node) {
        return node.type == 'network_image' &&
            node.attributes['network_image_src'] is String;
      };
}

... and register NetworkImageNodeWidgetBuilder in the AppFlowyEditor.

final editorState = EditorState(
  document: StateTree.empty()
    ..insert(
      [0],
      [
        TextNode.empty(),
        Node.fromJson({
          'type': 'network_image',
          'attributes': {
            'network_image_src':
                'https://docs.flutter.dev/assets/images/dash/dash-fainting.gif'
          }
        })
      ],
    ),
);
return AppFlowyEditor(
  editorState: editorState,
  editorStyle: EditorStyle.defaultStyle(),
  shortcutEvents: const [],
  customBuilders: {
    'network_image': NetworkImageNodeWidgetBuilder(),
  },
);

Check out the complete code file of this example.

Customizing a Theme (New Feature in 0.0.5, Alpha)

We will use a simple example to illustrate how to quickly customize a theme.

Let's start with a blank document:

@override
Widget build(BuildContext context) {
  return Scaffold(
    body: Container(
      alignment: Alignment.topCenter,
      child: AppFlowyEditor(
        editorState: EditorState.empty(),
        editorStyle: EditorStyle.defaultStyle(),
        shortcutEvents: const [],
        customBuilders: const {},
      ),
    ),
  );
}

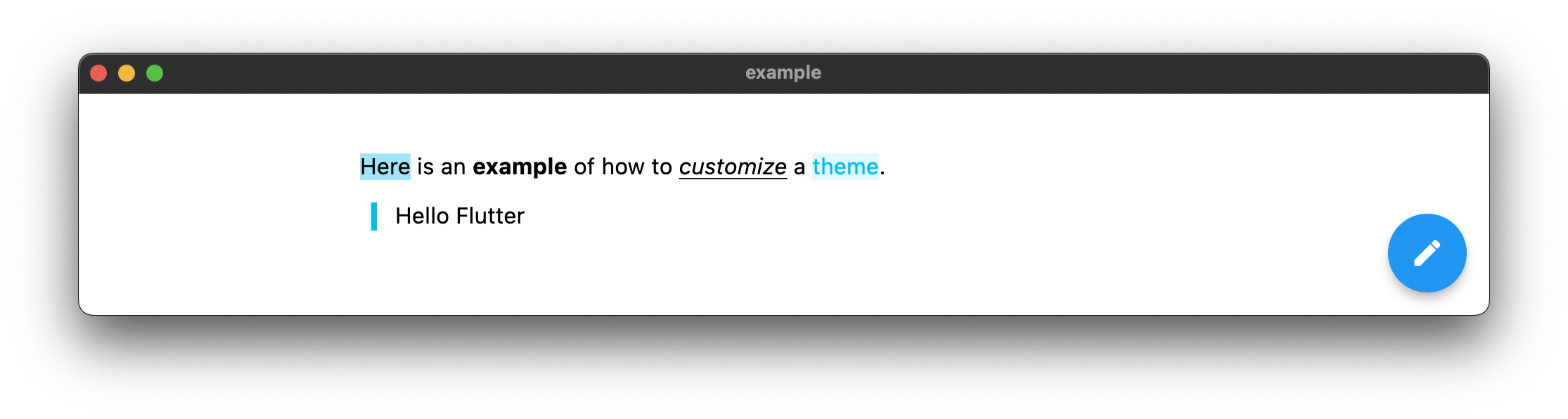

At this point, the editor looks like ...

Next, we will customize the EditorStyle.

EditorStyle _customizedStyle() {
  final editorStyle = EditorStyle.defaultStyle();
  return editorStyle.copyWith(
    cursorColor: Colors.white,
    selectionColor: Colors.blue.withOpacity(0.3),
    textStyle: editorStyle.textStyle.copyWith(
      defaultTextStyle: GoogleFonts.poppins().copyWith(
        color: Colors.white,
        fontSize: 14.0,
      ),
      defaultPlaceholderTextStyle: GoogleFonts.poppins().copyWith(
        color: Colors.white.withOpacity(0.5),
        fontSize: 14.0,
      ),
      bold: const TextStyle(fontWeight: FontWeight.w900),
      code: TextStyle(
        fontStyle: FontStyle.italic,
        color: Colors.red[300],
        backgroundColor: Colors.grey.withOpacity(0.3),
      ),
      highlightColorHex: '0x6FFFEB3B',
    ),
    pluginStyles: {
      'text/quote': builtInPluginStyle
        ..update(
          'textStyle',
          (_) {
            return (EditorState editorState, Node node) {
              return TextStyle(
                color: Colors.blue[200],
                fontStyle: FontStyle.italic,
                fontSize: 12.0,
              );
            };
          },
        ),
    },
  );
}

Now our 'customize style' function is done and the only task left is to inject it into the AppFlowyEditor.

@override
Widget build(BuildContext context) {
  return Scaffold(
    body: Container(
      alignment: Alignment.topCenter,
      child: AppFlowyEditor(
        editorState: EditorState.empty(),
        editorStyle: _customizedStyle(),
        shortcutEvents: const [],
        customBuilders: const {},
      ),
    ),
  );
}
